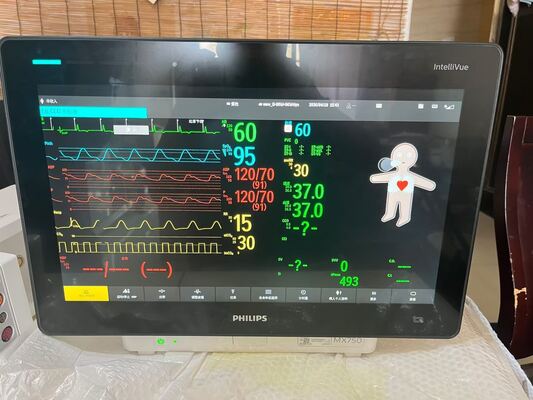

PHIlip MX750 monitor testing spare parts available
Detalhes do produto:
| Lugar de origem: | Original |
| Marca: | PHILIP |
| Número do modelo: | MX750 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | Negotiation, pls contact me |
| Detalhes da embalagem: | Caixa de papelão |
| Tempo de entrega: | Dentro de 1-2 dias úteis após a confirmação do pagamento |
| Termos de pagamento: | T/T, União Ocidental |
| Habilidade da fonte: | 10 |
|
Informação detalhada |
|||
| Ações: | DISPONÍVEL | Garantia: | 6 meses |
|---|---|---|---|
| PRICE: | NEGOTIABLE | Doença: | Bom |
| Pacote: | Pacote de papelão | ||
| Destacar: | PHIlip MX750 monitor spare parts,patient monitor testing accessories,MX750 monitor replacement parts |
||
Descrição de produto
Philip IntelliVue MX750 Specifications
1. Basic Information
Model: IntelliVue MX750
Type: High-end modular bedside patient monitor for ICU, OR and Anesthesia Department

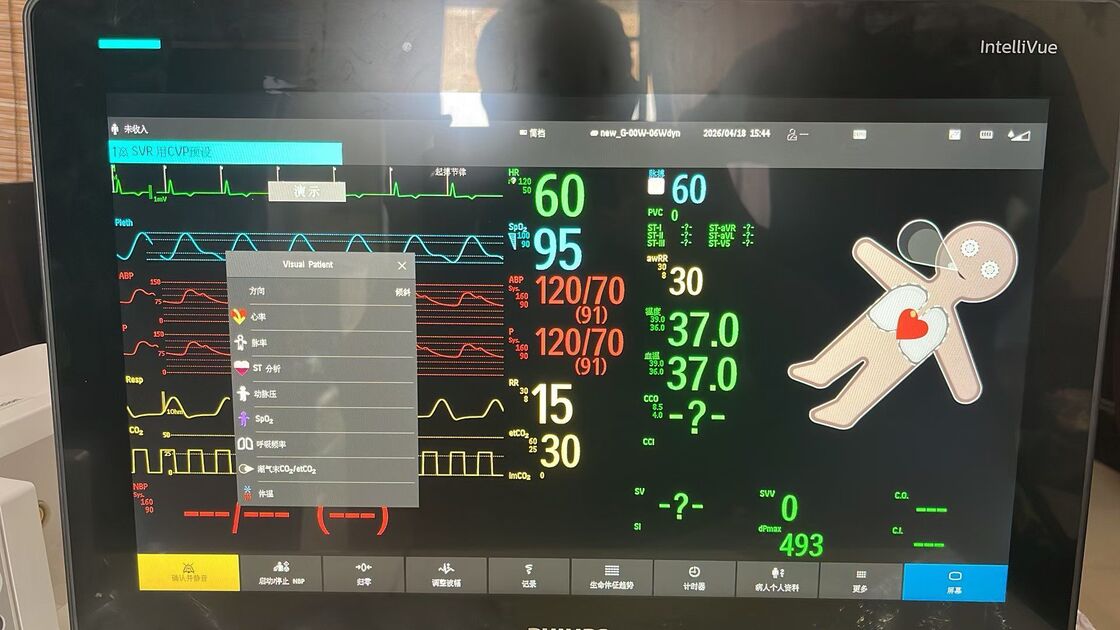

Display: 19-inch Full HD widescreen (1920×1080), pCAP capacitive touch screen, up to 12 real-time waveforms on one screen
Module Slots: Maximum 8 slots with 2 pcs FMX-4 module rack
Integrated PC (iPC): Optional fanless medical-grade Windows system
2. Monitoring Parameters (Standard & Optional)
- ECG: 3/5/6/10 lead, arrhythmia analysis, ST segment monitoring, QT/QTc measurement
- RESP: Impedance respiration, respiratory rate monitoring
- SpO₂: Pulse oximetry with Perfusion Index (PI)
- NIBP: Oscillometric measurement, adult/pediatric/neonatal mode
- IBP (Optional): Up to 4 channels (ART, CVP, PAP, PCWP etc.)
- TEMP: 2-channel body temperature (surface / cavity)
- Cardiac Output (Optional): PiCCO / thermodilution method
- Anesthesia Gas (Optional): EtCO₂, O₂, N₂O and inhaled anesthetic agents
- BIS (Optional): Anesthesia depth monitoring
3. System & Functions
- Data storage: Trend data, event review, 12-lead ECG storage
- Network: Ethernet / Wi-Fi, compatible with HL7 / DICOM, connects to hospital information system
- Remote display: Support XDS remote terminal, encrypted video and alarm transmission
- Alarm management: Alarm Advisor intelligent alarm optimization to reduce false alarms
- Security: Node authentication, network/print/file system encryption, RFID / NFC login
4. Physical & Environmental
Dimensions (W×H×D): Approx. 480×350×150 mm
Operating temperature: 0–40 °C
Humidity: 10%–95% (non-condensing)
Power supply: 100–240 VAC; optional built-in backup battery
5. Main Part Numbers (Reference)
Main Unit: 866471
19” Touch Screen: M750-001
ECG Module: X1-ECG
SpO₂ Module: X1-SPO2
NIBP Module: X1-NIBP
Recorder/Printer Module: M3536A (same as HeartStar MRx)
Deseja saber mais detalhes sobre este produto
