Philip Avalon FM20 / FM30 Thermal Printhead (TLPH)
Detalhes do produto:
| Lugar de origem: | Original |
| Marca: | PHILIP |
| Número do modelo: | FM20 FM30 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | Negotiation, pls contact me |
| Detalhes da embalagem: | Caixa de papelão |
| Tempo de entrega: | Dentro de 1-2 dias úteis após a confirmação do pagamento |
| Termos de pagamento: | T/T, União Ocidental |
| Habilidade da fonte: | 10 |
|
Informação detalhada |
|||
| Doença: | Bom | Garantia: | 90 dias |
|---|---|---|---|
| pacote: | Pacote de papelão | Modelo: | FM20 FM30 |
| Destacar: | Philip Avalon FM20 thermal printhead,FM30 fetal monitor printhead,TLPH thermal printhead for fetal monitors |
||
Descrição de produto

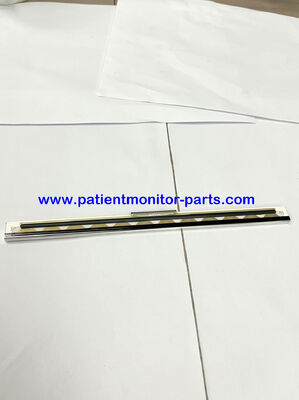

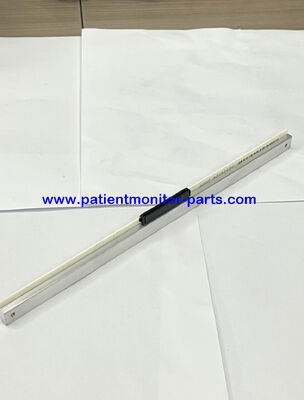

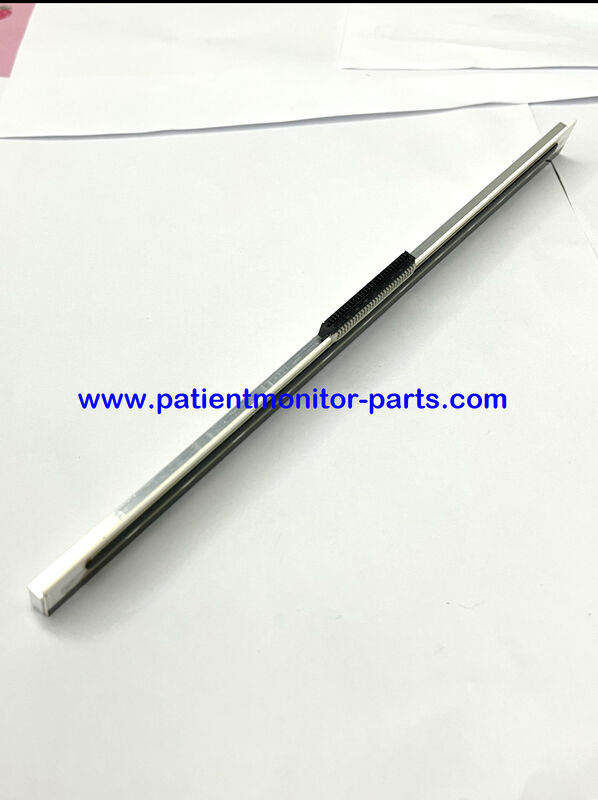

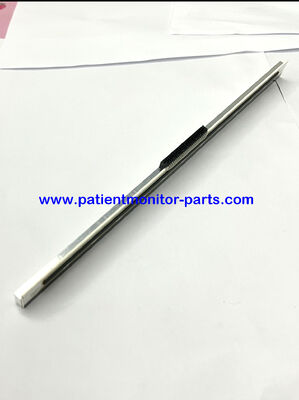

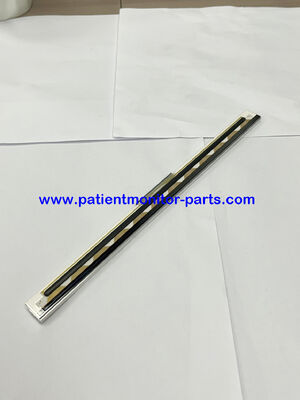

Philip Avalon FM20 / FM30 Thermal Printhead (TLPH)
(Original Philip, for M2702A / M2703A)
1. Basic Information
- Official Name: Thermal Line Printhead (TLPH)
- Compatible Models: Avalon FM20, FM30 (M2702A, M2703A)
- Printer Type: 6-inch thermal array recorder
- Part Number (Original): 4522 991 25291 (assembly)
2. Optical / Printing Resolution
- Dot Density: 8 dots/mm (203.2 dpi)
- Effective Print Width: 150 mm (full paper width)
- Total Dots: 1200 dots (150 mm × 8 dots/mm)
- Dot Pitch: 0.125 mm × 0.125 mm
3. Electrical Characteristics
- Printhead Voltage: 5.0 VDC ±5% (logic) / 24 VDC ±10% (heating)
- Current Per Dot: ~20–25 mA (peak)
- Resistance Per Element: ~120 Ω (typical)
- Interface: 50-pin ribbon cable (to Recorder Adapter Board M2703-66430)
4. Mechanical & Performance
- Print Speed:
- Standard: 25 mm/s
- Fast: 50 mm/s (for review playback)
- Paper Speed Range: 1–50 mm/s (configurable)
- Lifetime: ≥1,000,000 lines (under rated conditions)
- Operating Temp: +5°C to +45°C
- Storage Temp: -20°C to +60°C
5. Paper Specifications (Matching)
- Paper Width: 150 mm (Z-fold or roll)
- Paper Type: Medical-grade thermal paper (HP 1911A / Philip 453564435211)
- Sensor: Optical reflective sensor (for black mark detection)
6. Key Features
- 5-channel recording: FHR1, FHR2, TOCO, MECG, annotations
- High contrast: For clear FHR/TOCO waveform reproduction
- Long-term stability: Ceramic heating elements, anti-corrosion coating
